Mobile Energy Storage

The utility model has a wide range of  application scenarios, and can solve the  power supply problem in remote areas or  places where resources are converted  into energy that are di?cult to be covered by the traditional power grid.

Mobile Energy Storage

The utility model has a wide range of  application scenarios, and can solve the  power supply problem in remote areas or  places where resources are converted  into energy that are di?cult to be covered by the traditional power grid.

產品特點

Product Features
Product Features

核心優勢

Core Advantages
Core Advantages
  • Flexible modular system configuration with optional designs for frames, containers, and cabinets.
  • Configurations above MWh can meet MW - level power output requirements.
  • Adopt power - grade modules and vehicle - grade vibration resistance test standards.
  • High protection level design, meeting the application requirements in extreme areas such as deserts, high altitudes, and severe cold.

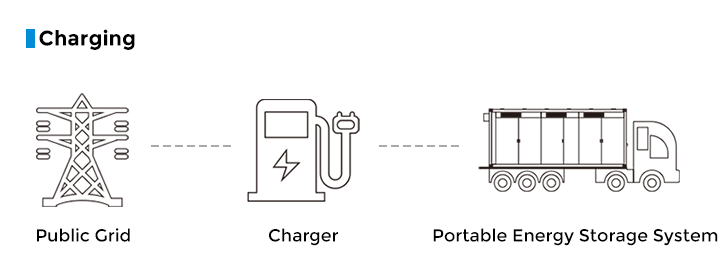

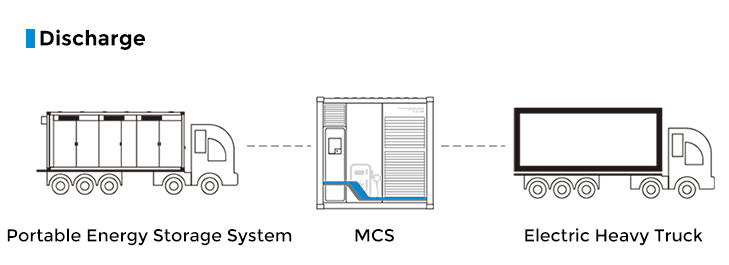

移動儲能應用工況

Mobile Energy Storage for Grid Applications
Mobile Energy Storage
for Grid Applications

應用場景

Application scenarios
Application scenarios
Mobile EV Charging Station
Mobile EV Charging Station
Agriculture and Remote Areas
Agriculture and Remote Areas
Outdoor Activity and Exhibition
Outdoor Activity and Exhibition
Charging for Mining Truck
Charging for Mining Truck
Emergency and Rescue
Emergency and Rescue
Industry and Construction Site
Industry and Construction Site

規格參數

Parameters
Parameters
  • Battery type :
    LFP
  • Nominal voltage :
    614.4Vdc
  • Rated storage energy :
    1836kWh
  • Battery string :
    3*3P192S
  • System safety standards :
    GB/T38031/UN3536/UN38.3
  • Thermal management approach :
    Liquid cooling
  • IP protection level :
    IP 65
  • Permitted running temperature :
    -30℃~+50℃
  • Container dimension :
    3020(L)*2438(W)*2896(H)mm
  • Rated output power :
    1500kW
  • Rated output current :
    1500A
  • Output voltage range :
    200~1000Vdc
  • Charging port interface :
    MCS/CCS1/CCS2 (Optional)
  • Cooling approach :
    Intelligent air-cooling
  • IP protection level :
    IP 54
  • Permitted running temperature :
    -30℃~+50℃
  • Container dimension :
    3020(L)*2438(W)*2896(H)mm

推薦產品

Recommended Products
Recommended Products
Please contact us for more information
Consult Procure +86-400-166-7608 info@hynn.com.cn
