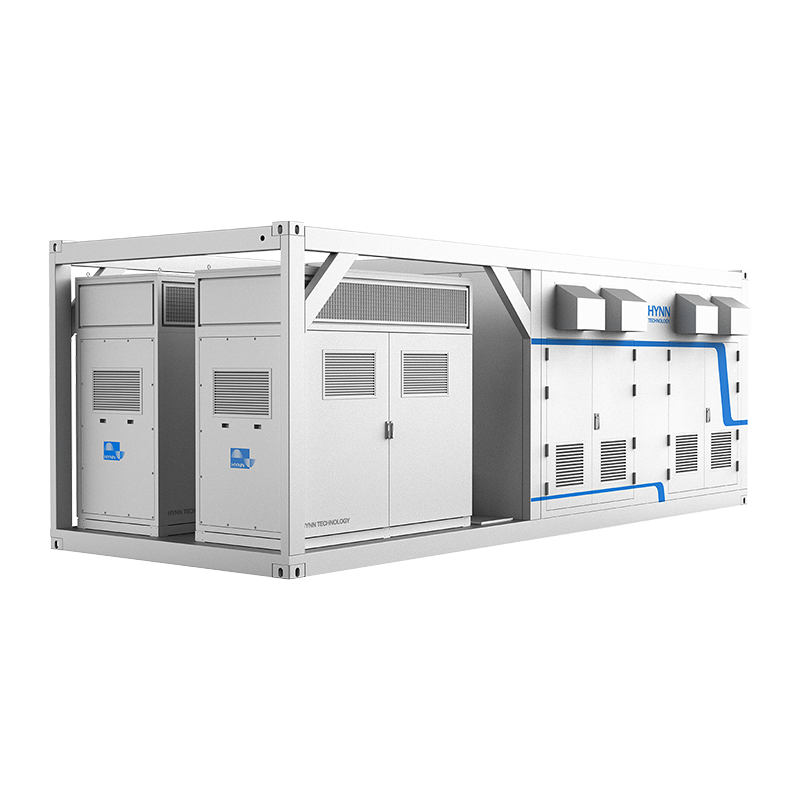

Integrated Inverter Step-Up Transformer System

Developed on the same platform as grid-level protection systems, enabling coordinated protection across EMS, PMS, PCS, and BMS.

Supports multi-layer system protection to address poor coordination and fault isolation challenges common in the industry.

Integrated Inverter Step-Up Transformer System

Developed on the same platform as grid-level protection systems, enabling coordinated protection across EMS, PMS, PCS, and BMS.

Supports multi-layer system protection to address poor coordination and fault isolation challenges common in the industry.

產品特點

Product Features
Product Features

規格參數

Parameters
Parameters
  • Max DC power :
    5500/7590kW
  • DC voltage range :
    1000~1500V
  • DC input channels :
    2/4
  • Rated DC Current :
    5000/6900A
  • AC voltage range :
    586~759V
  • Maximum AC Power :
    5500/7590kVA
  • Rated AC Current :
    5230/5774A
  • Rated AC voltage :
    690V
  • Grid frequency range :
    50/60Hz
  • Output current (THD) :
    <3% (Rated power)
  • Transformer type :
    Dry/Oil
  • HV rating :
    6~35kV
  • Maximum Efficiency :
    98.5%
  • Protection level :
    IP 55
  • Allowable environment temperature :
    -35℃~+60℃

推薦產品

Recommended Products
Recommended Products
Please contact us for more information
